Remote Control 2 ton 3 ton 5 ton 270 360 Degree Swing Jib Crane

Place of Origin : Henan, China (Mainland)

Brand Name : YT

Certification : ISO;CE;SGS

Model Number : BZ

Rated Lifting Moment : according to the specifide parameters

Rated Loading Capacity : 0.5t-16t

Max. Lifting Load : 16t

Max. Lifting Height : 6m

Span : 4.59~6.82m

Application : various

Feature : Jib Crane

MOQ : 1

Price : Negotiation

Packaging Details : Electrical and other parts packed by high quality plywood crate, Beams packed by plastic woven cloth

Delivery Time : 15-30 days

Payment Terms : TT/LC/Others

Supply Ability : 10000 sets per year

Contact Now

360 Degree Swing Jib Crane Price

This floor mounted slewing jib crane is designed for heavy lifting, able to rotate 360 degrees. Used indoors or outdoors for production lines, depatch areas or general workshop applications.

The Yuantai design allows maximum height of lift in restricted areas.

Crane comes complete with the following:

Remote Control 2 ton 3 ton 5 ton 270 360 Degree Swing Jib Crane

Set of signs to meet workcover requirements.
15 year structural warranty certificate.
Operator and maintenance manual.
Crane is supplied with end warning stripes, capacity sign & data plate.

Note:

Swing distance and height can be modified on request.
Suitability of existing base structure for imposed loads is the responsibility of the purchaser.

Features:

Model Capacity Range: 0.5 ton to 10 ton
Outreach Range: 2m to 12m
Maximum Slew: 360 degrees
Surface Treatment: Indoor or Outdoor Paint System
Cranes Built to Quality Standard ISO9001

Crane Options:

Hoist and Trolley (motorised or manual)
Jib Lock
Slew limits
Motorised or Manual Slew Drives
Crane Electrics
Explosion Protection in accordance to ATEX
Custom Paint Systems, Hot Dip Galvanised

Sketch & Parameters


	Load Capacity:
	0.5 ton, 1 ton, 2 ton, 3 ton, 5 ton, 10 ton

	Arm Length, Span:
	2m on wards

	Lift Height:
	1.5m onwards

Load Capacity, t	Arm Length, A, m	Lift Height, h, m	Total Height, H, m	Lift Speed, m/min	Travel Speed, m/min
0.5	As Required	1.5	h+0.5	7	10/20
1	As Required	1.5	h+0.55	8	10/20
2	As Required	1.5	h+0.55	8	10/20
3	As Required	1.5	h+0.6	8	10/20
5	As Required	1.5	h+0.7	7	10/20
10	As Required	1.5	h+0.75	7	10/20

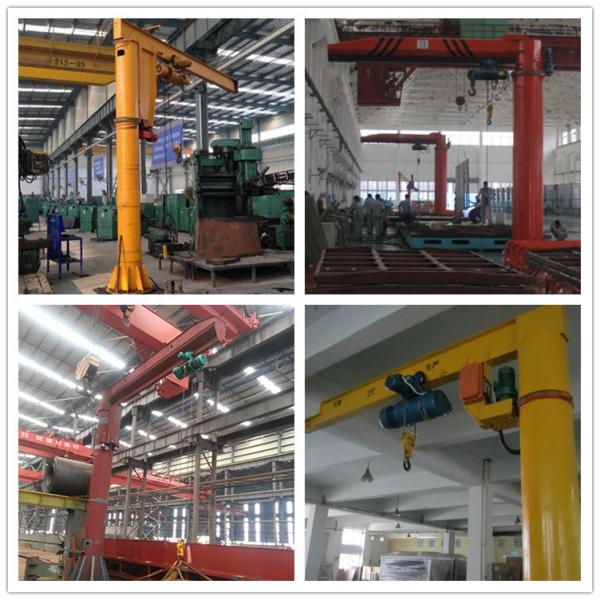

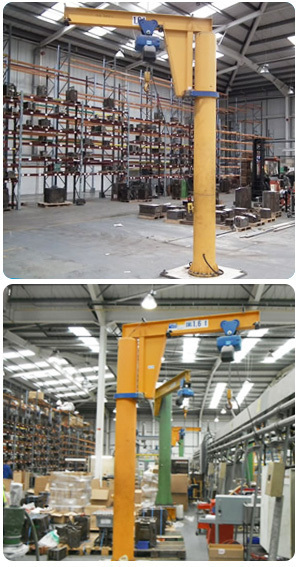

Product Showing

Remote Control 2 ton 3 ton 5 ton 270 360 Degree Swing Jib Crane

Remote Control 2 ton 3 ton 5 ton 270 360 Degree Swing Jib Crane Images
